09326: terraf and clones: The left and right sides of the image are cut off in the title demo scene.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
09326	Graphics	Minor	Always	2 hours ago	35 minutes ago

Tester	motomachi16	View Status	Public	Platform	MAME (Official Binary)
Assigned To	hap	Resolution	Fixed	OS	Windows (x64)
Status [?]	Resolved			Driver	nichibutsu/armedf.cpp
Version	0.283	Fixed in Version	0.284GIT	Build	x64
		Fixed in Git Commit	88b43a9	Github Pull Request #

Summary	09326: terraf and clones: The left and right sides of the image are cut off in the title demo scene.

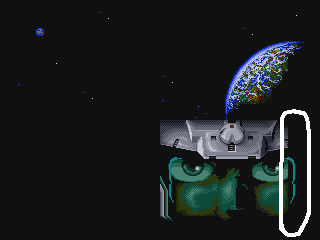

Description	The left and right edges of the demo image before the title is displayed are not displayed.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	terraf and clones

Attached Files	0000-0.png (13,317 bytes) 1 hour ago Uploaded by motomachi16

No.23896 motomachi16 Tester 1 hour ago	The following changes will allow it to display correctly: armedf_v.cpp void armedf_state::text_videoram_w(offs_t offset, u8 data) { m_text_videoram[offset] = data; m_tx_tilemap->mark_tile_dirty(offset); // fix }
No.23899 hap Developer 38 minutes ago	Almost but not quite. for armedf, the dirty offset mask is as-is, so 0x7ff for terraf, it is 0xbff (0x400 masked out instead of 0x800 due to strange tilemapping)
