09327: terraf and clones: Sprites may disappear during attract mode.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
09327	Graphics	Minor	Always	Dec 13, 2025, 20:07	Dec 14, 2025, 08:35

Tester	motomachi16	View Status	Public	Platform	MAME (Official Binary)
Assigned To	motomachi16	Resolution	Fixed	OS	Windows (x64)
Status [?]	Resolved			Driver	nichibutsu/armedf.cpp
Version	0.283	Fixed in Version	0.284	Build	x64
		Fixed in Git Commit	c727a62	Github Pull Request #

Summary	09327: terraf and clones: Sprites may disappear during attract mode.
Description	This is an easy phenomenon to spot in the Japanese version.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	terraf and clones

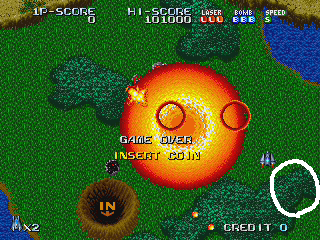

Attached Files	0000-1.png (78,016 bytes) Dec 13, 2025, 20:07 Uploaded by motomachi16

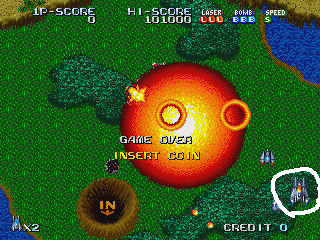

Attached Files	0000-2.png (72,947 bytes) Dec 13, 2025, 20:08 Uploaded by motomachi16

No.23897 motomachi16 Tester Dec 13, 2025, 20:14	Maybe the sprite RAM size is different. The following changes will allow it to display correctly: armedf.cpp void armedf_state::terraf_common_map(address_map &map) { common_map(map); map(0x060000, 0x0605ff).ram().share("spriteram"); // fix map(0x060400, 0x063fff).ram(); }
No.23898 motomachi16 Tester Dec 13, 2025, 20:19	By the way, if you make a similar modification to Kozure Ookami, one player will be lost when time runs out. Please be sure to check it out.
No.23900 hap Developer Dec 13, 2025, 21:09	Other than increasing 2nd ram() start offset, fix is ok! "By the way, if you make a similar modification to Kozure Ookami, one player will be lost when time runs out." I don't understand what you mean. kozure_map is: map(0x060000, 0x060fff).ram().share("spriteram"); map(0x061000, 0x063fff).ram();
No.23901 hap Developer Dec 13, 2025, 21:11	I can also see player sprites disappear in terraf (parent set) attract mode lava stage, so I changed terrafj => terraf and clones
No.23902 motomachi16 Tester Dec 13, 2025, 21:57	sorry. When I assumed that this was the design of the board and made corrections, the overtime function also worked as a byproduct. map(0x060000, 0x0605ff).ram().share("spriteram"); // Kozure Ookami timer over bug fixed, need verify map(0x060600, 0x063fff).ram(); //fix
No.23903 hap Developer Dec 14, 2025, 00:45	Yes it's likely all games on this hardware have size 0x600 spriteram instead of 0x1000, we'd need to test all games then. Changing the spriteram size can't have any effect on this time over bug. To the emulated software, there's RAM at 60000-63fff, no matter where the limit of spriteram sits. I don't see anywhere else where m_spriteram is written to, and there's no sprite collision flags or anything like that. Besides, it looks like MAME hacks around it already in init_kozure? /* patch "time over" bug, see notes on top. */ ROM[0x1016c/2] = 0x4e71;
No.23904 motomachi16 Tester Dec 14, 2025, 08:35	I see, that was my misunderstanding.
