09385: tmnt2: Foreground graphics in Sewer Surfin' don't appear

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
09385	Graphics	Minor	Always	Feb 8, 2026, 15:06	Feb 19, 2026, 00:49

Tester	Adrian Tepez	View Status	Public	Platform	MAME (Self-compiled)
Assigned To	hap	Resolution	Fixed	OS	Linux (64-bit)
Status [?]	Resolved			Driver	konami/tmnt2.cpp
Version	0.285	Fixed in Version	0.286	Build	x64
		Fixed in Git Commit	9299956	Github Pull Request #

Summary	09385: tmnt2: Foreground graphics in Sewer Surfin' don't appear

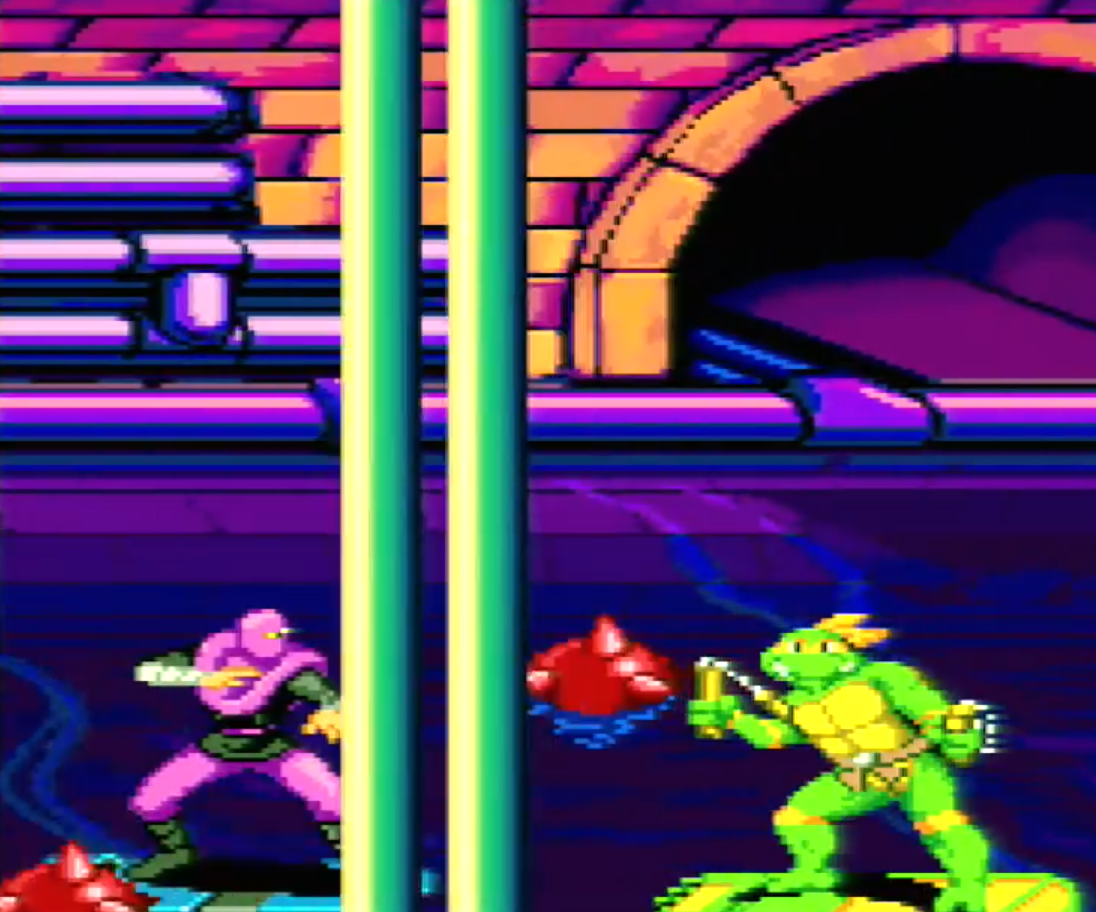

Description	On arcade hardware there are some green foreground elements (pipes?) that appear in stage 3, but do not in emulation.
Steps To Reproduce	Play through stage 3.
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	tmnt2

Attached Files	Foreground.png (815,903 bytes) Feb 8, 2026, 15:08 Uploaded by Adrian Tepez

No.24113 hap Developer Feb 8, 2026, 20:30	It's a sprite, something's not right with sprite protection handling. In tmnt2.cpp tmnt2_prot_w, if you change "if (!ylock)" to "if (!ylock&&0)", it'll show up.
No.24114 Adrian Tepez Tester Feb 9, 2026, 00:15	Thanks, that does indeed restore the graphics! However it seems to also cause certain graphical effects elsewhere to bug out. Defeating Cement Man causes gaps to appear in his sprite as he shrinks. This also happens to the Shredder sprite during the Krang fight at the end of stage 8, both when it enlarges and when it shrinks after defeating Krang. I double-checked to make sure it doesn't happen unless I change that line of code and confirmed that the sprite scaling is normal without the change. If I notice any other problems I'll follow up.
No.24115 Adrian Tepez Tester Feb 9, 2026, 01:06	Ok, there are others that break as well. -Splinter's sprite gets obliterated -Enemy explosion sprites get cut off entirely at the top -Tokka and Rahzar also have the same gaps in their sprites after defeat -After defeating Shredder, April's face is squished vertically -Baxter and Metalhead's silhouettes are squished vertically That's what I've noticed so far.
No.24116 hap Developer Feb 9, 2026, 09:55	The &&0 wasn't a suggested bugfix ;D It just means that ylock is probably where something's not right. More specifically this: ylock = xlock = (f2 & 0x0020 && (!xzoom \|\| xzoom == 0x100));
