Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
04877 Graphics Minor Always May 28, 2012, 04:31 Jul 8, 2015, 12:41
Tester M.A.S.H. View Status Public Platform MAME (Self-compiled)
Assigned To Mamesick Resolution Fixed OS Windows XP
Status [?] Resolved Driver
Version 0.146 Fixed in Version 0.164 Build Normal
Fixed in Git Commit Github Pull Request #
Summary 04877: usclssic: Graphics are shifted.
Description U.S. Classic has a big ugly bar on the left since 0.144u3.

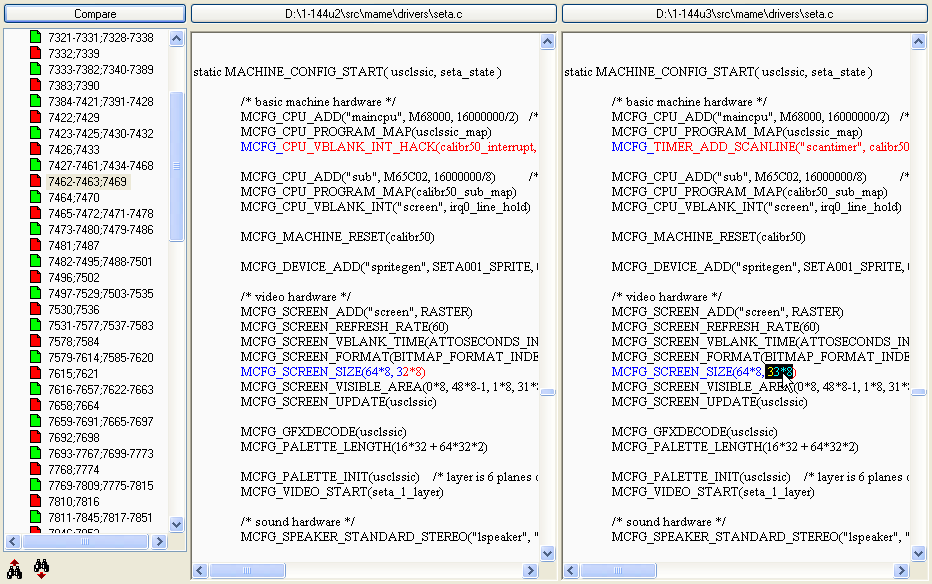

Comparing the soucre from 0.144u2 and u3 i found a typo in drivers\seta.c (see snapshot).
Changing the MCFG_SCREEN_SIZE in line 7659 back to 32 the graphic bug is gone!
Steps To Reproduce
Additional Information Fixed the summary from "Visible area problem" into "Graphics are shifted."
Github Commit
Flags
Regression Version 0.144u3
Affected Sets / Systems usclssic
Attached Files

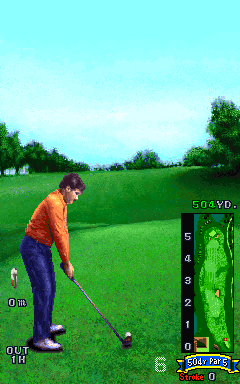

png file icon usclssic-0146.png (52,026 bytes) May 28, 2012, 04:31 Uploaded by M.A.S.H.
M.A.S.H.
png file icon usclssic_0144u2-0144u3.png (33,187 bytes) May 28, 2012, 04:31 Uploaded by M.A.S.H.
M.A.S.H.
png file icon 0000.png (45,823 bytes) May 28, 2012, 19:50 Uploaded by haynor
haynor
Relationships
related to 04405ResolvedMamesick  tndrcade + others: Offset issues in seta drivers
Notes
4
User avatar
No.08688
haynor666
Tester
May 28, 2012, 19:50
edited on: May 28, 2012, 19:51

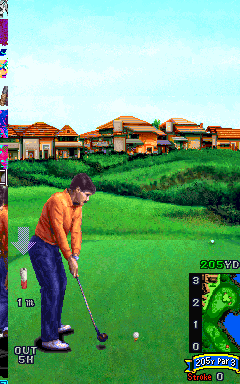

More like shifted a bit, Attached screenshot
User avatar
No.08690
Fujix
Administrator
May 29, 2012, 01:49
Fixed the report summary.
User avatar
No.08691
Haze
Senior Tester
May 29, 2012, 01:51
edited on: May 29, 2012, 01:57
I think It's just this bug

http://www.mametesters.org/view.php?id=4405

(this is something anybody can do...)

(or actually if the size was changed to 33*8 that does look suspicious, could be a combination of both issues?)
User avatar
No.11857
Mamesick
Senior Tester
Jul 8, 2015, 12:41
Fixed using what M.A.S.H. suggested, after verifying that all offsets are right for this game
